Huixian Xinda Textile Machinery Parts Co., Ltd. supplies domestic shuttle weaving machine accessories ,China Loom F52 adjustment ring nut universal parts. The adjustment nut is used to press the edge spring of the weaving machine ring, and adjust the sliding resistance of the ring by relying on the spring groove. The F52 nut is fixed on the M8 screw (F53) of the ring base plate support feet F00-2, F00-3, 2600-9, 2600-10.
The inner plane of the hexagonal nut is square, and its main function is to clamp the sliding groove of the F48 spring, ensuring the elasticity of the F48 plate spring. The specific elasticity is adjusted according to the lever principle.
The F52 adjustable leather ring nut for shuttle looms is a universal component of 1511, 1515, and GA615 shuttle looms (which can be borrowed from each other). It is used in 4 units per loom, with 2 units at each end of the reed frame.

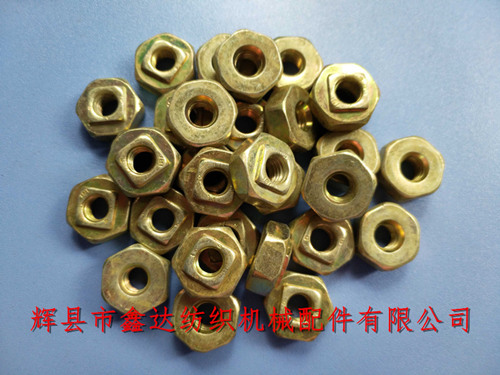

The packaging of adjusting nut F52 is a transparent self sealing bag, with 100 pieces per bag and a minimum order quantity of 10. The color shown in the above picture is the finished product after electroplating with colored zinc; If you need to purchase domestic shuttle weaving machine accessories - F52 adjusting leather ring nuts, textile machine universal parts and other products, please contact Mr. Yang from our company for consultation.
