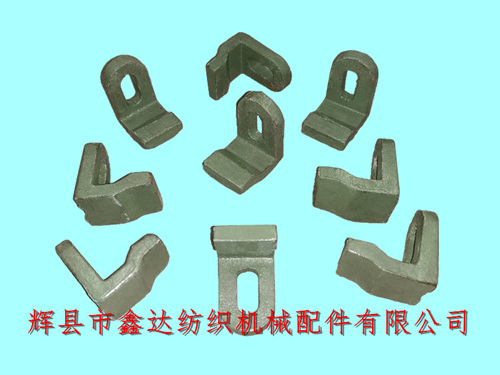

Huixian Xinda Textile Machinery Parts Co., Ltd. sells borrowed accessories for the F230/1515/1511 switch arm connecting block of the weaving machine. The F230 switch arm connecting block is connected to F220 and installed below the switch seat of the weaving machine. The height of F230 is 52mm, the width is 42mm, and the overall thickness is about 8mm. The shape is straight angle, and the material is gray iron. The switch arm connecting block F230 and the switch joint core F221 are bolted together in the circular hole below the switch handle seat F220.
The switch connector core F221 should be inserted into the front hole of the switch arm F213. When driving, the switch connector core F221 should be in the middle of the slot hole of the switch arm. Adjustment: If the axial travel of the pulley is not enough, the position of the starting rod in and out of the starting linkage and the pressure of the starting pressure spring can be adjusted.
When starting the weaving machine, there should be a slight gap between the washer on the starting rod and the starting arm. The starting device of the weaving machine is mainly concentrated around the switch, and the starting arm F206, starting rod F210, starting rod F212, starting pressure spring F211 and other matching kits are used as auxiliary.
The packaging method for the switch arm and connecting block is 10 pieces per string, regardless of whether it is left or right. If you need to purchase weaving machine connecting blocks, 1511 accessories, or 1515 accessories, please contact Mr. Yang from our company for consultation.
